Tilta GSS-T01-V/GSS-T01-AB Tilta Float Handheld Gimbal Support System V-Mount Gold Mount Compatible with Ronin S RS2

Product Description

* The Tilta Float System works in conjunction with the DJI RS 2 gimbal to provide a small, compact camera stabilizer

system to allow you to accomplish smooth cinematic camera movements with smaller camera setups.
* The counterweight-based post provides further stabilization for your setup beyond what the gimbal is already doing to

allow for the smoothest possible free flowing camera movement imaginable.
* The spring-loaded arm and support vest design puts the weight of the rig onto your torso, allowing for longer operating

times before the user gets fatigued.
* The newly included Lower Back Support provides additional weight distribution ensuring comfortable operation over any

duration.
* Multiple power options provide more flexibly when powering the RS2. The system can power the RS2 via Gold Mount, V-

Mount, TB50, or the RS2 Battery Handle itself via optional accessories.
* The Float is compatible with any gimbal that can mount via 1/4″-20 threads and can be powered by a 2 Pin Lemo.
*The Wireless Thumb Controller is only compatible with the RS2*
*The Float does not have power outputs other than the 2 Pin Lemo designed for powering the RS2*
*The Internal Post Cable can handle 14.8V and 3A with maximum ability to handle 6A*

* [INCREASED STABILITY] Provides More Stability and Control While Operating the RS2
* [FULL RS2 CONTROL] Supports Full Control of the RS2
* [COMFORT & SUPPORT] Lightweight Vest Redistributes Weight for More Comfortable Operation over Longer Durations
* [INCREASED BATTERY] Multiple Power Options Provide Longer Battery Life to RS2
* [COMPATIBILITY] Supports any Gimbal that Connects with 1/4"-20 Threads and can Power via a 2 Pin Lemo

LIGHTWEIGHT & WEARABLE VEST ALLOWS FOR THE GIMBAL TO BE BROUGHT TIGHT TO THE BODY

The quick release vest has a shock absorbing design. Lightweight and compact. The ergonomical weight distribution design gives the operator steady support. Flexible and easy fitting for all body types.

OPTIMIZED ARM CARRYING STRUCTURE AND CAPACITY

Durably built with pliable springs provide the forth axis of stabilization. The user has more control while operating.

Main Features

Flexible

Easy high and low angle switch. NATO rail connection is built onto both top and bottom ends. Compatible will all gimbals and power supply equipment. Retractable post can function as monopod or extension.

Retractable Post

Carbon-fiber made post. Wear proof and lightweight.

Wireless Control For Precise Operation

Fully authorized DJI internal communication protocol. Precisely control RS2 through the wireless control receiver module.

Universal Design, Easily Switch From Left To Right

Quick assembly design. Both the arm and monitor bracket support left and right operation. Compatible with various gimbal brands.

More Protection For Secure Operation

Modular camera and battery can be carried on the back of the vest. Safely operate with the guidance of the safety guiding strap and enhanced anti-collision design.

Easy Balancing + Quick & Precise

Simplified balancing process. Compatible with a wide range of accessories. Adjustable weight depending on the setups. Quick and precise control.

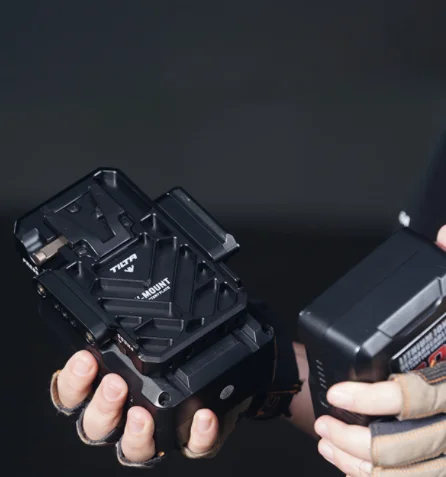

Continuous Power: Four Power Supply Options

Power through external V-mount, gold mount, DJI battery grip, and TB50 batteries. Tidy, cordless build. Compact and portable.

Compact & Portable

Highly portable design for quick assembly and long distance transportation.

Specifications

Brand		Brand	Tilta
Model			GSS-T01-V/GSS-T01-AB
Color			Black
Material			Aluminum alloy, stainless steel, carbon fiber, plastic, and nylon fabric
Battery Plate			Gold Mount/V-Mount
Dimensions			35 x 10 x 18 inches
Weight			48 lbs
Net Weight			16.5 lbs
Tilta Float System Specs	Product dimensions	835x345x210mm
		Product weight	10kg (Net Weight 7.5kg)
		Materials	Carbon fiber, aluminum, plastic, and nylon fabric
Tilta Float System Support Vest	Vest Size	600-1200mm
		Extension	Built-in Tilta standard 15mm quick release baseplate.
Tilta Float System Arm	Connector post diameter	12mm
		Maximum payload capacity	10kg
		Up and down movement range	800mm (±4300)
		Weight	2.27kg
Tilta Float System Post	Material	Carbon fiber and aluminum
		Mount	NATO rail
		Power input/output	2-pin LEMO
		Maximum Power Input	14.8V, 6A
		Length range	500-1000mm
Tilta Wireless Thumb Controller for RS2	emote control range	50-70m (Dependent on the location, there might be a slight variance.)
		Cold shoe mount
		2.4 GHz wireless module
Power Supply Solutions	1. V-mount battery 2. Gold mount battery 3. DJI TB50 battery 4. RS2 battery grip
