Dufrais Express

Tilta Shock Absorbing Arm TAM-C01 for vehicular stabilization compatible with Ronin 2, Movi and Gravity 3 Axis Gimbals

Regular price $7,229.73 USD
Regular price $0.00 USD Sale price $7,229.73 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour
Product Description
The Tilta Shock Absorbing Arm provides the ultimate experience in vehicular stabilization.The front arm is a hydraulic damping support system. Using two hydraulic cylinders, it can get ultra smooth shots even when pushed to its maximum payload capacity: 55lbs!The Tilta Shock Absorbing Arm was engineered for high speeds. The faster you go, the more the arm will provide enhanced resistance, peak shock absorption, and stability.The built-in damping adjustment knob can be used to fine tune your rig for optimal calibration.The main car mount of the arm insulates the “after-shock” that can stem from the mounting equipment itself.Simply use one 1.5 inch speed rail (2 inch outer diameter) to connect it to any vehicle car mount rig, making it a highly flexible system to get a variety of car-mounted shots.The Tilta Shock Absorbing Arm can handle various shooting environments via the main arm’s shock absorbing spring with built-in tension adjustment from 22lbs to 55lbs.The stainless steel shock absorbing cradle head is resistant to high temperatures and corrosion.
Additionally, the cradle head provides hard dampening adjustment knobs for side-to-side and back-to-front movement in order to sustain excessive shock from a fast-moving vehicle or uneven terrain.The arm was built for heavy duty 3 axis gimbals and includes mounts for the Ronin 2, Movi and Tiltamax Gravity 3-Axis Gimbal.Once the appropriate mount is attached to the cradle head, you can quickly and easily slide and lock your gimbal onto the arm and you are ready to go!
The Tilta Shock Absorbing Arm comes complete with a rolling hard shell waterproof safety case with custom foam inserts.Combined with Tilta’s other filmmaking accessories like the Nucleus Series Wireless Follow Focus Systems or the 1A Tools’ Alpha Wheels, and, you’ll be an unstoppable filmmaking machine!

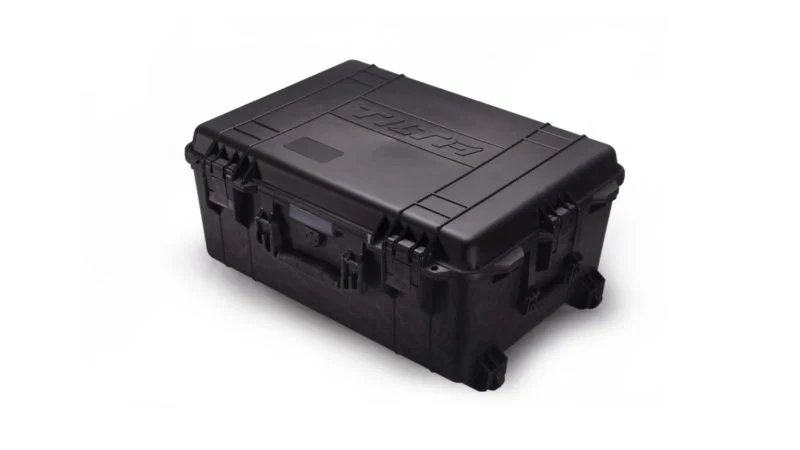

Tilta Shock Absorbing

Arm Hard Shell

Waterproof Safety Case
Protect and store your Tilta Shock Absorbing Arm with this travel-sized waterproof rolling safety case. Custom foam cutouts
tightly pack your shock absorbing arm into the case for maximum protection and portability.
Features
* [FAST & STEADY] Shock Absorption for Smooth Camera Movement on Any Terrain.

* [HEAVY DUTY] Contrustion Supports Camera Systems between 22lbs and 55lbs.

* [UNIVERSAL] Design Allows You to Easily Rig the Arm to Any 1.5" Speed Rail.

* [HIGH SPEED] Performance via Multiple Hydraulic Cylinders & Dampening Systems.

* [COMPATIBLE] with Ronin 2, Movi and Gravity 3 Axis Gimbals.
Specifications
Brand
Tilta
Model
TAM-C01
Materials
Aluminum-alloy, stainless-steel
Color
Black
Compatible with
 Ronin 2, Movi and Gravity 3 Axis Gimbals
Diameter of Pipe Needed for Mounting
2 inch outside diameter (AKA 1.5 inch speed rail)
Payload
10kg-25kg (22lbs-55lbs)
Weight
28.8 lbs
