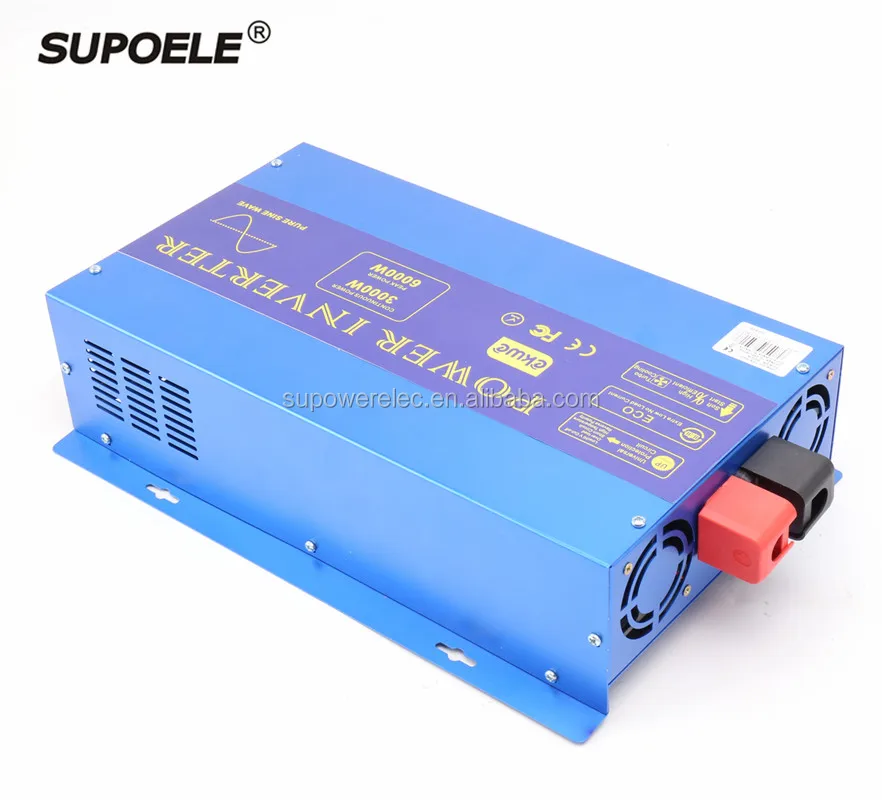

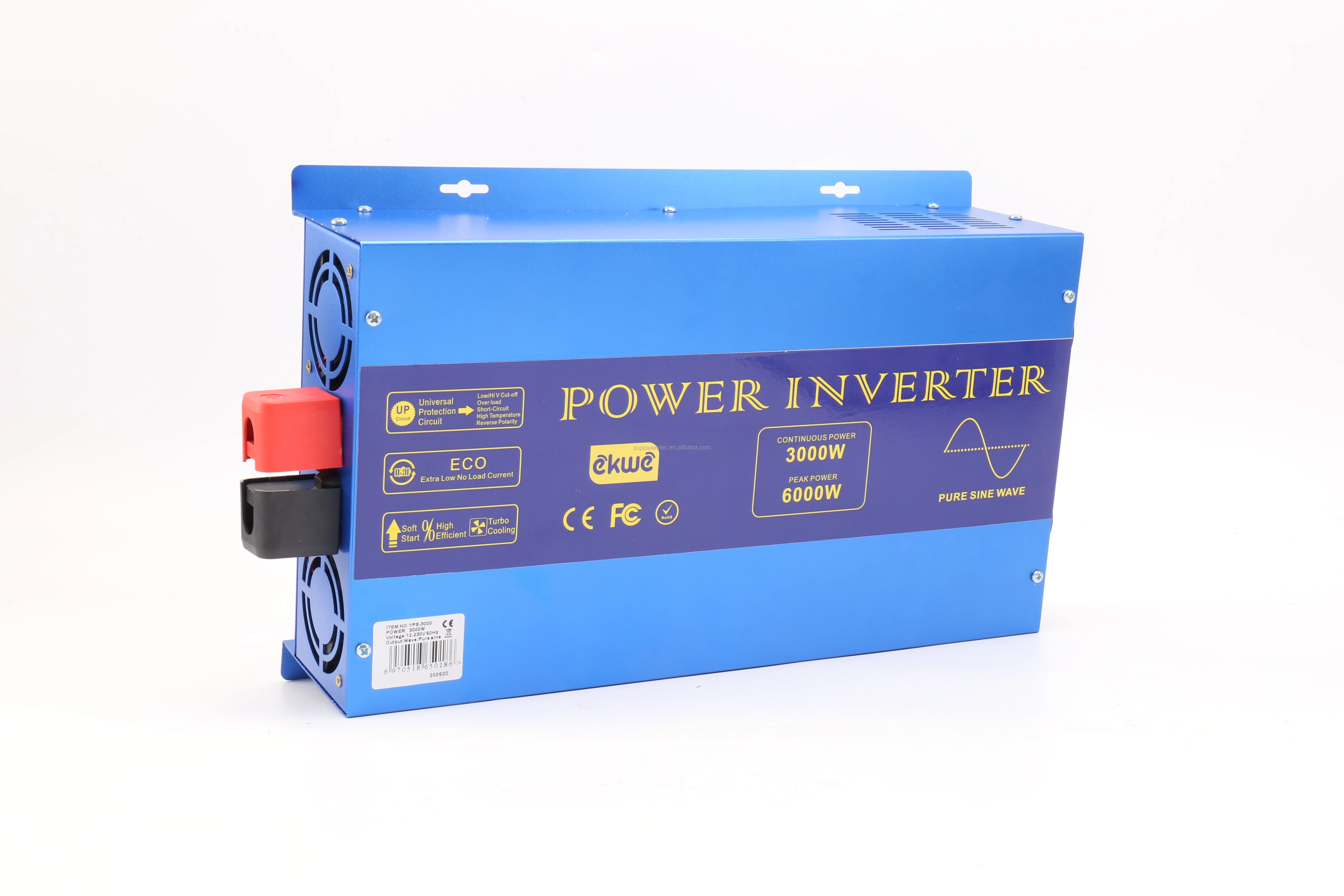

SUPOELE DC 12V 24V 48V To AC 120V 220V 50 60Hz LED Display Pure Sine Wave Power Inverter 3000w For Off Grid Solar Power System

SUPOELE DC 12V 24V 48V To AC 120V 220V 50 60Hz LED Display Pure Sine Wave Power Inverter 3000w For Off Grid Solar Power System



Application:

Medical Instruments, Emergency Power, Oxygen Concentrators, Cash Register, Home Theater, High-end Stereos, Notebook, Computers, Power Tools, Radios, DVD players, TV's , Musical Instruments, Recording Equipments, Limousines, Buses, RV's, Precision Equipment, Sensitive Radio Equipment, Laser Printers, Fax Machines, etc.
USB 5V DC output is power supply for Digital Camera, Cell Phone, Video Game or Ipad, etc.







Application places

  1 In-car or on-boat devices series: military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.
  2 Industry equipments series: solar energy, wind power, gas discharge lamp and etc.
  3 Office area: Computer, printer, copier, scanner, digital camera and etc.
  4 Kitchen utensils series: Micro-wave oven, induction cooker,refrigerator, and etc.
  5 House appliance devices: Electric fans, vacuum cleaner, AC, lighting lamps, and etc.
  6 Power tool series: electric saw, drilling machine, punching machines, air compressors, and etc.



Features:

Dedicated design for the use of Solar Power Energy.

Pure Sine Wave

Wireless Remote Control

Supply USB 5V/500mA

High temperature alarm and protection system

Output overloaded alarm and protection system

Output short circuit alarm and protection system

High surge capacity for starting demanding loads

Alarm and protection for low / high battery



Output sockets type

Note: when order, pls inform which output socket you choose!







 Parameter:



Model		SPP3000-12	SPP3000-24	SPP3000-36	SPP3000-48
Output	Continuous output	3000W
	Surge Power	6000W
	AC Voltage	100V / 110V / 115V / 120V / 200V/ 220V / 230V / 240V to be selected
	Regulation	Vrms ± 5%
	Frequency	50Hz or 60Hz
	Wave Form	Pure Sine Wave
	Total Harmonic Distortion	THD < 3%
	USB Output	DC 5V ± 5% 500mA
Input	Battery Voltage	12V	24V	36V	48V
	DC Current (typ.)	300A	150A	100A	75A
	Low Battery Alarm	10.5V ± 2%	21V ± 2%	31.5V ± 2%	42V ± 2%
	Battery Voltage Low Stop	10V ± 2%	20V ± 2%	30V ± 2%	40V ± 2%
	High Battery	16V ± 2%	32V ± 2%	48V ± 2%	64V ± 2%
	No load current	2100mA	1050mA	700mA	550mA
	Efficiency	> 92%
Protection	High temperature	Yes
	Short-circuit	Yes
	Overload	Yes
	Input Voltage	Yes
Intelligent Design Heat Auto Control		Fan Start : 42°C ± 3 , Fan Stop : 38°C± 3
		High Temperature Shut Down : 63°C±3 , Restart Output : 55°C±3
Indicator		Normally : Green LED   Over Temperature : Yellow LED Exceptionally : Red LED
Others		With wireless remote control
