Relics Ground Searching 3M High Depth KTY Pulse Induction Metal Detector

KTY is a professional metal detector with metal discrimination and a high sensibility to precious metals. It applies pulse induction technology of have decisive advantages in comparison to conventional VLF (very low frequency) detectors:

· pulse induction system with microprocessor-controlled metal type display

· undisturbed searching in mineralized soils and salt water

· different search coils with automatic calibration

· high sensitivity to gold and precious metals

· convenient search and easy handling without the necessity of previous knowledge or preparatory training

Up to 2.5 meters depth performance:

With pulse induction technology and big search coil (2m x 4pcs cable coil) it is possible to locate larger objects in a depth of up to 2.5 m. In comparison, conventional detectors with small coils only allow a search depth of at the most 1 m.

Exploration without disturbance:

Most of the mineralized soils contain stones with metallic characteristics which therefore are displayed as metal objects by the majority of detectors. Thus, a selective search is difficult.

These soils (the same goes for salt water) are no problem for KTY- with the Reset-button (automatic zero balance) most of the disturbing mineralized objects (which can lead to errors) will be neutralized.

Metal discrimination

For metal discrimination the KTY is provided with a micro-processor, controlled conductibility recording. Thereby metals like iron, copper, aluminum, gold or silver are discriminated and separately displayed.

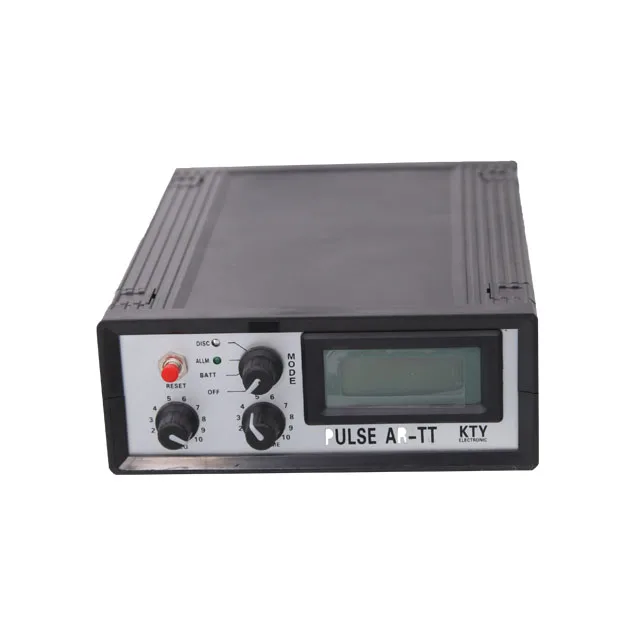

Electronic unit

The electronic unit is installed in a high quality case. In the front you will find the main knob, the reset button as well as the frequency and volume regulation. The digital display shows the different Sensitivity values.

Search modes:

ID (Discrimination Mode)
In this search mode the discriminator comes into operation. Thereby an optical and acoustical discrimination takes place. The different metals will be signaled through varying tones and conductivity values.

Examples of differential conductivity values:

AM (All Metals Mode)

All metals will be visualized without discrimination (here the metals will not be examined for their conductivity).
This position has the advantage that you can detect with the highest sensibility; through the indication value one can evaluate the depth of the object. The lower the value number, the deeper the metal object is hidden under the surface. The shape of the object can be identified as well.

Coils: we offer different search coils, which can be connected to the electronic unit without additional adjustment.

Automatic adjustment: To reach the optimal search depth, the adequate search coil should match the size of the object. KTY works with a variable search frequency between 1200-1600 Hz, therefore the application of all search coils is uncomplicated. The various search coils for the KTY are connected to the electronic unit in which a special circuit mechanism controls the coil electricity and adjusts the adequate search frequency automatically.
By using the appropriate search coils of 45 cm, smaller and medium-sized objects can be located. To reach an ideal search result - depending on the size of the object - the adequate search coil should be selected.

Standard search coil 18"(45 cm)

Useful for the search after small, medium-sized and large metal objects. Also very convenient for a quick search of an area.

L8 m cable search coil (not included the frame).
